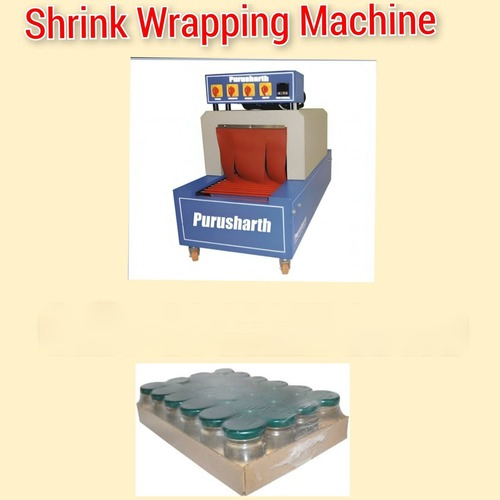

Shrink Sleeve Wrapping Machine

Price 26500 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Shrink Sleeve Wrapping Machine Specification

Type
Shrink Sleeve Wrapping Machine

Material
Stainless Steel

Capacity
20-60 packs/min

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Based

Shrink Speed
Adjustable up to 40 m/min

Air Pressure
0.6-0.8 MPa

Roll Diameter
Max. 500 mm

Voltage
220/380V, 50/60Hz

Dimension (L*W*H)
2500 x 1200 x 1800 mm

Weight
400 kg

Color
Silver

Sleeve Thickness
30-80 microns

Heating System
Electric Hot Air Circulation

Power Consumption
5.5 kW

Minimum Pack Size
40 x 40 mm

Operator Interface
Touch Screen

Safety Features
Emergency Stop, Overload Protection

Conveyor Speed
Adjustable

Maximum Pack Size
300 x 300 mm

Temperature Range
80°C - 250°C

Film Type
PVC, PET, OPS

Shrink Sleeve Wrapping Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
5 Units Per Day

Delivery Time
5-6 Days

About Shrink Sleeve Wrapping Machine

Shrink Sleeve Wrapping Machine: Also known as Water Bottles, Tin, Jar , web sealer with Shrink wrapping Machine,Automatic Web Sealing Machine,Automatic Web Sealer,Shrink Tunnel,Shrink Tunnel Machine,Web Sealer,Web Sealer Machine,Web Sealer With Shrink Tunnel,Shrink sleeve wrapping machine,bottle wrapping machine web sealer packing machine,This machine is suitable Shrink packing for many industries, beverage,Mineral water, Juice plant, such as printing, pharmacy, floor, beverage, beer etc.Web Sealer Machine can be pushed manually or pneumatically. After the process of sealing & cutting, the products enter the shrink tunnel automatically.Shrink Wrapping Machine, Shrink Chamber, Shrink Tunnel, Web Sealer Machine useful to Shrink Wrap Groups of Products, Promotional Items, Products in Trays, Individual Products.

Product Details

Phase	Single
Brand	Purusharth
Voltage	240

Advanced Shrink Technology for Versatile Packaging

Our Shrink Sleeve Wrapping Machine employs electric hot air circulation to achieve precise and uniform shrink results, handling a wide temperature range suited to multiple film types, including PVC, PET, and OPS. With adjustable conveyor speed and shrink speed up to 40 m/min, this machine is tailored for various production demands, ensuring high efficiency and consistent packaging quality.

User-Friendly Operation and Safety Assured

Designed with a touch screen operator interface and PLC-based control, the machine offers intuitive operation, reducing training time and operator errors. Safety features such as emergency stop and overload protection enhance worksite security, while its fully automatic grade minimizes manual intervention for smoother operations.

FAQs of Shrink Sleeve Wrapping Machine:

Q: How does the Shrink Sleeve Wrapping Machine operate?

A: This machine uses electric hot air circulation to shrink the sleeve film around products. The user selects the desired parameters on the touch screen, such as conveyor speed, temperature (80C - 250C), and shrink speed. Products are automatically conveyed through the machine, where heated air evenly shrinks the film for a tight, professional finish.

Q: What types of films are compatible with this shrink wrapping machine?

A: The machine supports PVC, PET, and OPS films within the thickness range of 30-80 microns. It can handle film rolls with a maximum diameter of 500 mm, providing flexibility for different packaging needs.

Q: When should I use this machine in my packaging line?

A: Deploy this machine after primary packaging but before final packing or labeling. Its ideal for applying shrink sleeves or bundles to a wide assortment of products, increasing tamper evidence and brand visibility.

Q: Where can the Shrink Sleeve Wrapping Machine be installed?

A: Owing to its compact footprint (2500 x 1200 x 1800 mm) and stainless steel construction, the machine is suitable for installation in factories, warehouses, and distribution centers that require efficient and hygienic packaging processes.

Q: What is the process for changing pack sizes or film types?

A: To switch pack sizes or film types, adjust the machine settings via the touch screen. The width and speed of the conveyor, as well as the film tension and temperature, can be modified to accommodate pack sizes from 40 x 40 mm up to 300 x 300 mm, ensuring seamless transition between jobs.

Q: How do the safety features benefit the operator?

A: Safety measures such as the emergency stop button and overload protection safeguard operators by immediately halting operations in case of a malfunction, preventing accidents and equipment damage.

Q: What are the main advantages of using this wrapping machine?

A: Benefits include automated, high-speed operation (20-60 packs/min), customizable controls, reliable shrink quality, energy-efficient electric heating, and robust safety features. This leads to improved productivity, consistent presentation, and reduced labor costs.
